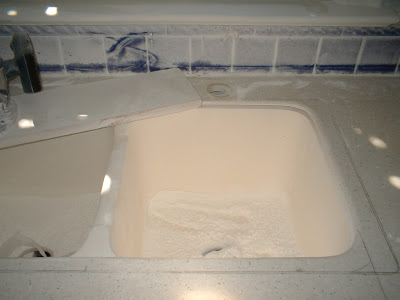

The sink cracked and it was leaking to the point where she could not use it. She had looked around to find someone to repair the sink for her. What you see here is the "repair". Someone showed up to smear some nasty goo on the crack and then called it "fixed". AHHHH! That is not fixed! That's just ugly goo smeared on a crack. Then, they even made her pay for it!

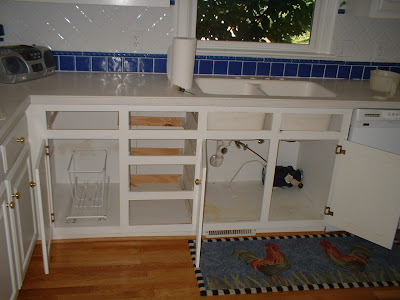

This particular type of sink replacement calls for a lot more job site preparation than many other types do. As you can see, all of the plumbing has been removed from the sink and the cabinets have been cleared out.
Next, I lay out my lines for cutting out the opening of the new sink. In many cases I would just cut out the deck while the old sink is still attached. In this case though, I have to first cut the existing sink free from the countertop and then cut my countertop deck to the correct dimension fo the new sink.

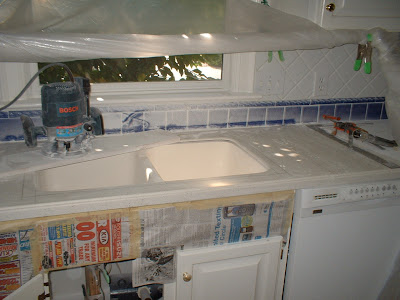

I have to put up a lot of plastic and then get in there with a dust mask and vacuum equipment. Dustless equipment does not collect dust very well for the types of things I will be doing so I have to take every measure possible to contain the dust for my customer.

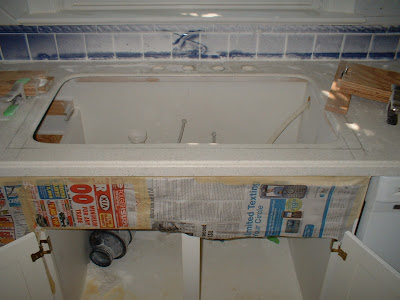

I have cut the sink free from the countertop here. Now I need to wrestle it out of the cabinet and start working on making the new cutout to accomodate the new undermount sink.
I made a template for this cutout instead of just trying to cut to the lines by hand. It is faster and more accurate with less finish work to do.

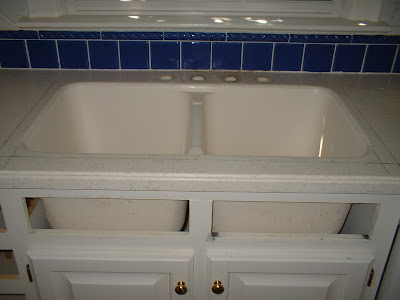

This is the finished cutout.
This was a very long work day and after many hours of working I kind of let the whole photo documentary fall by the way so I could get the job done. Some of the things that the pictures did not show you are as follows.
1. Once I got the old sink out of the cabinet, I had to cut out the cabinet wall on the left side of the sink. That was the only way to make room for the new sink to be put into the proper place.
2. I also had to cut out a "scoop" in the cabinet wall on the right side of the sink so the sink could be wiggled into position. I only needed about another 1 1/2" which is good because the dishwasher is there and we only could gain about 2" extra. That was pretty close.
3. I had to make an elaborate support system to hold the new granite composite undermount sink in place.
4. Once the sink was installed and all of the plumbing was reconnected I then had to replace the cabinet wall that I had to cut out on the left.
If you look closely you may notice that the sink is not exactly centered in the cabinet. That is because the original sink was not centered in the cabinet. Since the holes for the plumbing were already drilled into the countertop and there was no material available to allow me to "move" any of the holes, I had to work off of the center hole that was already there. (That note is for you eagle eyed craftsmen out there that would have spotted that in the picture!)
It was a major job and a very long day but that is what makes you feel like you've accompolished something substantial. I was happy with it and most importantly, the homeowner was happy with it and has been more than happy to pass my name around to others interested in having some out of the ordinary things done to their countertops.

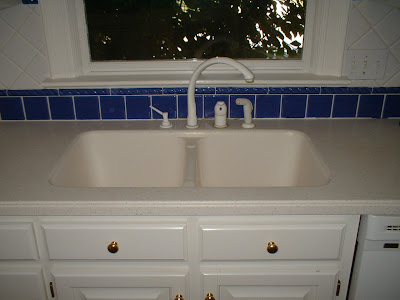

This is the finished product.
Another job by Complete Solid Surface Refinishing in beautiful North Carolina.
